Beskrivelse

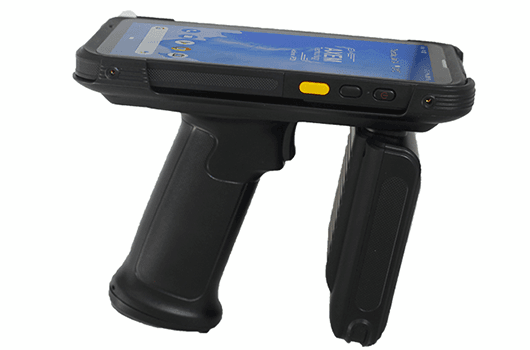

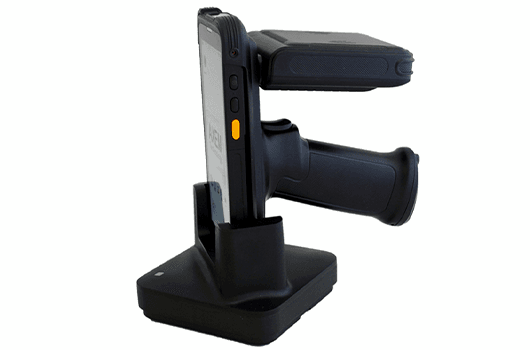

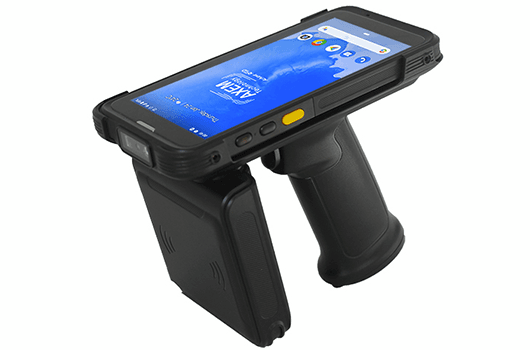

The MBS UHF is a mobile terminal designed for use in industrial environments. It combines UHF RFID, NFC and 1D/2D technologies, to meet all your data capture needs.

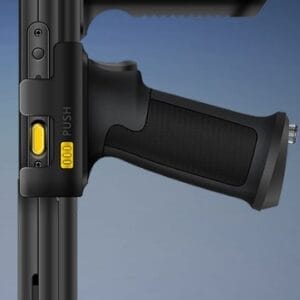

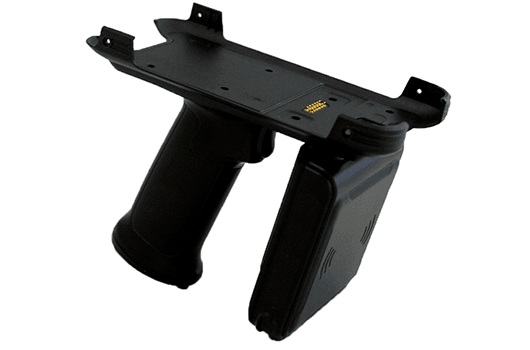

The UHF gun is attached to the MBS with screws. Device communication via pins is a key advantage!

Anvendelse

• Håndtering af ind- og udgående varer
• Modtagelse og kontrol af varer
• Hjælp med udarbejdelsen af dine bestillinger
• Lageropgørelse

Fordele

• Android 11.0 operating system
• 5” screen
• UHF power adjustable from +5dBm to +30dBm
• Keyboard emulation functionality for 2D (HID)
• 4420mah removalbel batteri
• ram 3gb+rom32gb el. 4gb + 64gb
• ip 65 per IEC sealing specifications
• multiple 1,8 m + 2,4 m
• RFID NFC
• option UHF Unisled og Magsled
• keyboar emulator 2D
• OS: Android 11.0
• CPU: Qualcomm 2.0 GHz Octa-core
• størrelse 160 x 76 x 15.5mm
• vægt 287gr. device med batteri
• display: 5.5-inch high definition full display (18:9), IPS LTPS 1440*720 Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
• batteri: 4 420 mAh removable main battery Standby: over 490 hours (WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user  environment) Charging time: 2.5 hours by standard adaptor and USB cable
• I/O ports: USB3.0, Type-C, OTG, extended thimble
• sensors: Gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor
• slot for SIM card, 1 slot for SIM or TF card
• camera: Rear 13MP Autofocus with flash, support for image and video formats
• wifi: 802.11 a/b/g/n/ac
• Bluetooth 5.0/4.1+HS/4.0/3.0+HS/2.1+EDR
• 3G / 4G
• GPS/AGPS, GLONASS, BeiDou, internal antenna
• Support Vo-LTE HD video voice call
• operating temp. -20°C to +50°C
• storage temp -40°C to +70°C
• 5% RH ~95°RH non condensing
• drop spec: Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range Multiple 2.4m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper
• tumble spec: 1000 x 0.5m / 1.6ft falls at room temperature
• esd: ±15KV air discharge, ±8KV conductive discharge
• data collection: UHF (option MagSled or MBS UHF)
• HF/NFC Frequency 13,56MHz Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc Chips M1 card (S50, S70), CPU card, NFC tags, etc. Range 2-4cm
• Barcode 1D/2D (option)  1D/2D Barcode Scanner SE4710 1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. 2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc..
